- 8 Production Wells with 10.2 MGD Total Capacity and 7.9 MGD
Firm Capacity
- 6 MG Low Service Storage
- 2 MG High Service Storage
- 3 MG Med Service Storage
- 14.2 MG Booster Pump Station
- 25 miles of 24", 16" and 12" transmission main
(MG=millions gallons, MGD=million gallon per day, GPM=gallons
per minute)) |

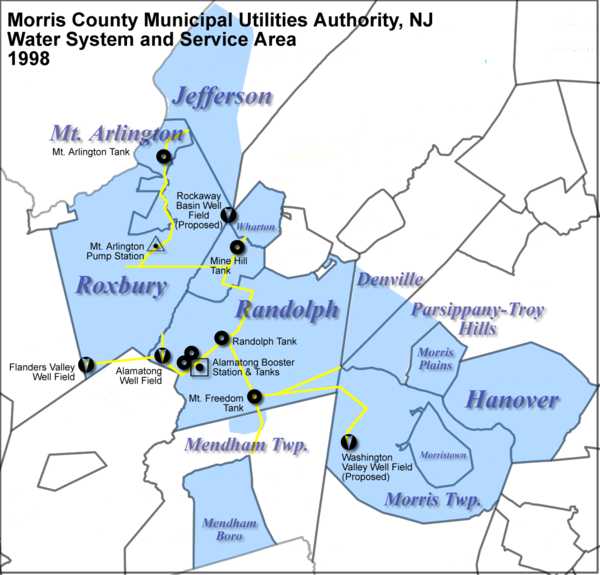

The MCMUA gets its water from eight wells drilled into
deep underground aquifers in two well fields. These wells pump up to 186 million
gallons per month.
- Alamatong Well Field in Randolph with a
diversion of 128 million gallons per month.
- Flanders Valley Well Field in Mt. Olive
Township with a diversion of 58 million gallons per month.
Production
Well Name |
Capacity
GPM |
Aquifer
Type |
| Alamatong #1 |
450 |
Upper Strat Drift |
| Alamatong #2 |
450 |
Upper Strat Drift |
| Alamatong #3 |
450 |
Lower Strat Drift |
| Alamatong #4 |
1,000 |
Lower Strat Drift |
| Alamatong #5 |
550 |
Liethsville Limestone |
| Alamatong #6 |
1,000 |
Liethsville Limestone |
| Flanders Valley #1 |
1,600 |
Liethsville Limestone |
| Flanders Valley #2 |
1,600 |
Liethsville Limestone |
| Total Capacity |
7,100 |
|
|
